SILOTOP ZERO Silo Venting Filters SILOTOP ZERO

Unrivalled maintenance-friendly

State-of-the-art dust filtration technology

High filtration efficiency

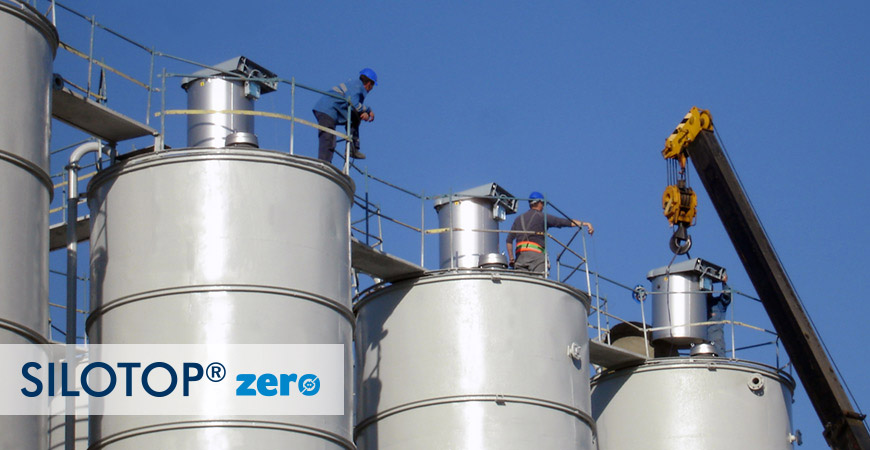

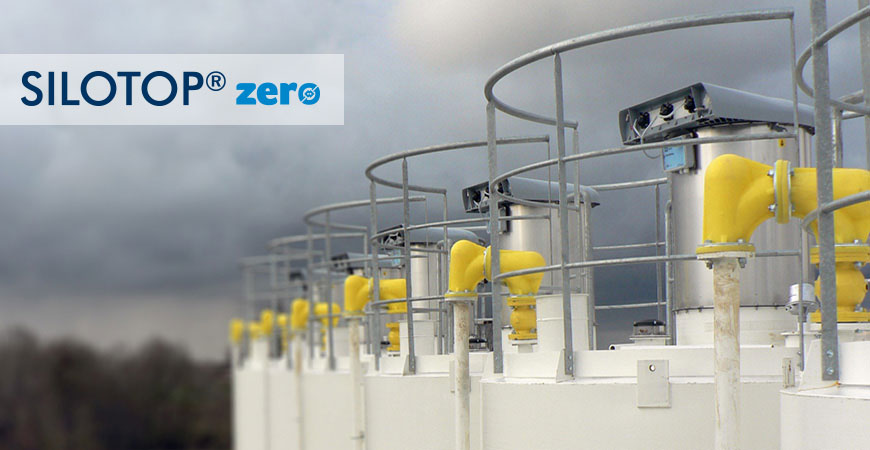

SILOTOP ZERO is a cylindrically shaped dust collector for venting pneumatically filled silos. Its stainless-steel casing contains vertically mounted POLYPLEAT elements made from NANOFIBER filter media. The compressed air pulse-jet cleaning system is integrated into the hinged weather protection cover.

Function

Dust separated from the air flow by special filter elements drops back into the silo after an integrated automatic compressed air pulse-jet cleaning system has removed it from the filter media.
Air filtration capacity has been increased through innovative high-performance filter media, which requires less filter surface area.
This results in a lower pressure drop and dust emission of less than 1 mg/Nm³ for concrete batching plant application.

Features

Filter surface: 14 m² (150 sq ft)
Air volume: up to 1,500 Nm³/h (880 cfm)
Filter elements: POLYPLEAT
Compressed air pulse-jet cleaning at 4 ~ 6 bar (58 ~ 87 PSI)
Dust temperature range -20 ~ 80 °C (-4 ~ 176 °F)
Cylindrical stainless-steel casing with bottom flange
Maintenance height ≤ 1,100 mm (3.6 ft)
High filtration efficiency due to NANOFIBER filter media
Maintenance-free compressed air pulse-jet cleaning unit integrated into hinged weather protection cover
Safe weather protection cover with lockable snap lock
Quick filter element removal

Benefits

Holding peak flow rates of 1,500 Nm³/h (880 cfm)
Low air consumption
Perfect accessibility due to compact design
Sturdy stainless-steel casing
Filter element replacement within a few minutes by one person only
Interchangeable with SILOTOP R03 as a whole
Worldwide spare parts supply through WAM subsidiaries
Ex-stock delivery

Options

24.5 m² (264 sq ft) filter surface
Multi-functional electronic differential pressure meter

Accessories

Weld-on bottom ring
Winter protection for solenoid valves
Emission sampling kit
